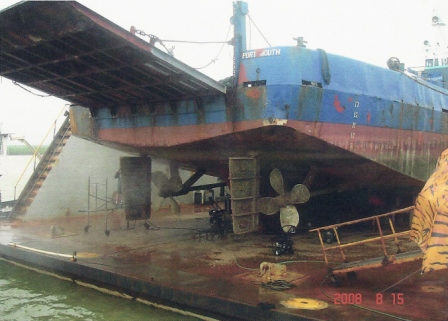

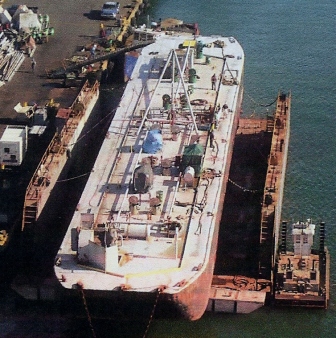

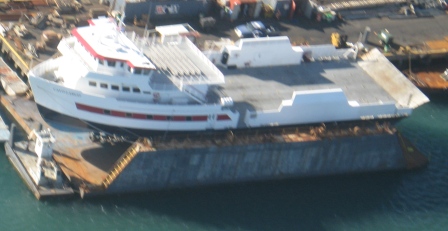

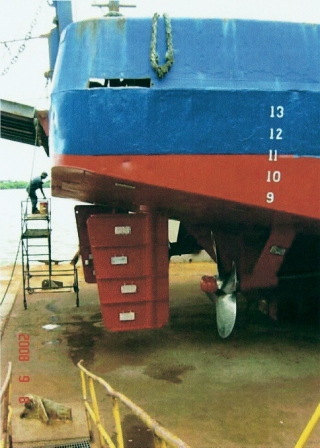

GENERAL |
| Year Built: early 1998 |
| Length: 160' |
| Breadth: 70' |
| Depth: 5' |
| Inside Wing walls: 62' |
| Wing Wall Height: 16' |
| Capacity at 1' of freeboard: 1,250 tons |
|
LAY OUT |
| (8) Outboard tanks, (4) on port and (4) on starboard side |
| Starboard side: 37'6" x 30' x 5' |
| Center Tanks: (4) 37'6" x 10' x 5' |
| Rake Voids: (3) |
| Wing Wall Tanks: (4) on each side 16' x 4' x 30' |
|
MECHANICAL |
|
Pumps: (8) 8" ABS brand submersible pumps, 21 hp, 220 volts, 3 phase |
|
Valves: (8) 12" butterfly valves to flood the 8 outboard tanks. (9) 8"
butterfly valves for internal transfers |
|
Pneumatic: (17) ASCO brand pneumatic valve actuators |
|
ELECTRICAL |
|
(1) Main breaker panel consisting of (8) 100 amp circuit breakers for the
pumps. (1) 100 amp circuit breaker for the pneumatic controls |
|
Main pump switch panel, (8) on and off switches, (8) magnetic switches |
|
Main valve switch panel (17) open or closed selector switches |
|
COMMENTS |
| This dry dock is reported to be in fair
condition |
|
TERMS |
| Location : PR |
| Price: $850,000 |
